PowerCat 6, 4 Pair Bulk Cable UTP

'

Part No: CAA-00076, CAA-00176, CAA-00394, CAA-00076-YL, CAA-00076-RD, CAA-00076-GR

Region: apac

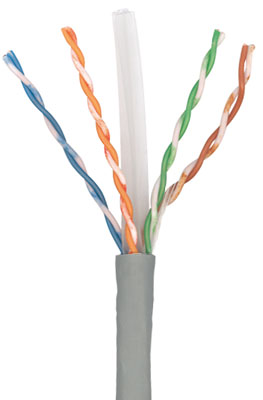

Molex PowerCat 6 (C6) 4 Pair U/UTP cable has been designed to support high speed data transmission systems such as Gigabit Ethernet. The cable is part of the PowerCat 6 range of products that are designed to comply with the Category 6 specification.

We recommend that the full range of PowerCat 6 products are used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.

Test results from Intertek are available here for CAA-00076.

Features & Benefits Technical Info
  • Compliant to ANSI/TIA-568-C.2 Category 6 cable specifications
  • Supports ultrahigh speed data networks such as Gigabit Ethernet (1000 Base-T & 1000 Base-TX) and beyond
  • Incorporates central spine maintaining pair separation during installation to ensure premium performance after installation
  • CM/CMR rated cable
  • Supplied in convenient 305m “Reel in a box”
  • UL listed
  • RoHS compliant

MECHANICAL
Bending Radius: < 4 X Cable Diameter at –20°C ± 1°C
Pulling Force: 11.5kg
Temperature Range: -20° to +70°C

Construction
Conductor: 23 AWG Solid bare Copper
Insulation: High Density Polyethylene Solid
Pairs: 2 Insulated conductors twisted together
Sheath: CM rated PVC
Cable Diameter: 6.0 +/- 0.2mm

ELECTRICAL
Conductor Resistance: < 9.38 Ohm/100m
Mutual Capacitance: < 5.6nF/100m
Resistance Unbalance: 5% Max
Capacitance Unbalance: 330pF/100m
Delay Skew: < 45nS PHYSICAL
Color code
Pair: 1-2: White-Orange Stripe and Orange
Pair: 3-6: White-Green Stripe and Green
Pair 4-5: White-Blue Stripe and Blue
Pair 7-8: White-Brown Stripe and Brown

COMMERCIAL STANDARDS
ANSI/TIA-568-C.2
ISO/IEC 11801

APPROVALS
UL Listed
ETL Verified

PoE
Our PowerCat 6 system is suitable for PoE applications as defined below:
IEEE 802.3bt from Type 1 to Type 4, and CISCO UPoE+
Notes:
For new installations of PoE Type 3 / Class 5 and above that wish to be eligible for the Molex 25 year Application Assurance Warranty, we require Category 6A cable to be used throughout. To confirm your PoE / RP3 cabling design is eligible for the Molex 25 year Application Assurance Warranty, your design must be verified and validated with the Molex PoE Calculator. Read more at https://www.molexces.com/poe-calculator
Molex recommends that the PoE feature on an individual switch port is power disabled prior to unplugging the associated powered Device.
Molex recommends that the full range of PowerCat 6 products be used in a system to maximize cabling and PoE performance. Details on Molex requirements for Warranty can be found at: https://www.molexces.com/about-us/ourwarranty/
